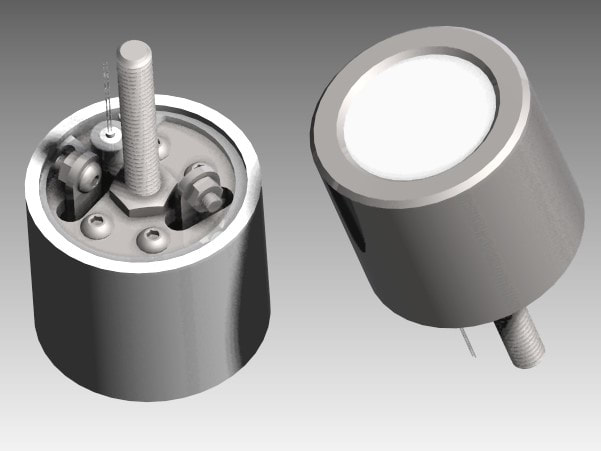

1000°c button heater

1" Button heater - 1000°c air/vacuum, kanthal or NiCr wire element, aluminium nitride front plate, stainless 316 body, K-type thermocouple.
Compact 38mm body diameter with 26.5mm hot-zone. Power requirement in air at 1000°c ≤ 10A, 24V.

Product Number: 1KA-00

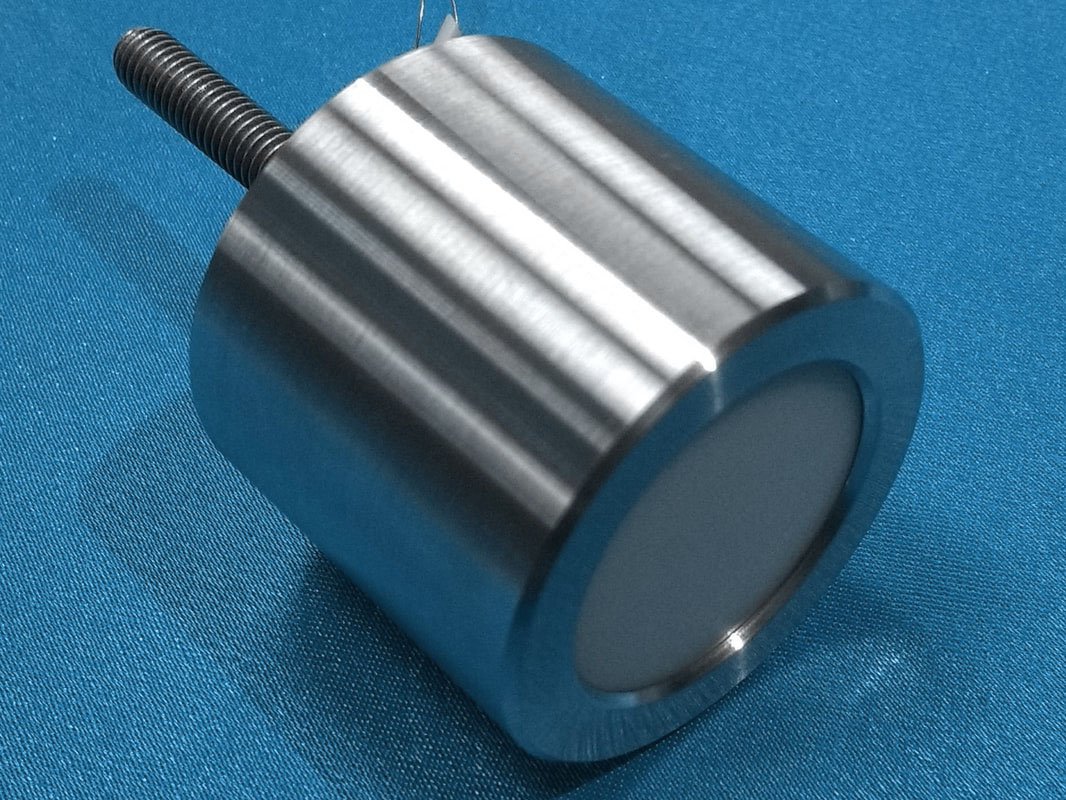

1400°c button heater

1" Button heater - 1400°c vacuum/inert atmosphere, refractory wire element, aluminium nitride front plate (option ofr different plate material), molybdenum body and shielding, C-type thermocouple.
Compact 38mm body diameter with 26.5mm hot-zone, similar body to 1KA-00 but with increased overall length.

Product Number: 1RY-00

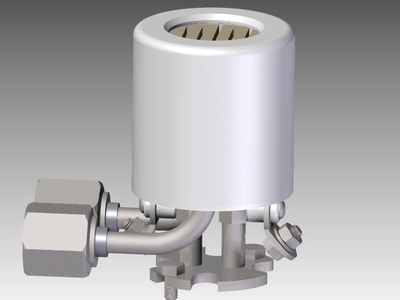

1600°c button heater

1" ultra high temperature heater - 1600°c air or vacuum, SiC coated graphite element, sapphire glass or alumina front plate, alumina or molybdenum body, C or B-type thermocouple, water-cooled body with options for connection type and orientation.

Product Number: 1SiC-00

Design

We possess a broad range of engineering design know-how, capable of designing much of the equipment used by the semiconductor industry.

Products

Semiquip offers a growing range of standard heating components and can design and manufacture bespoke heaters and devices. Most notably, we have developed a uniquely compact substrate manipulator stage.

Reverse/Repair Engineering

We are experienced in repair, reverse engineering and reconfiguring of obsolete equipment. Think about repurposing or upgrading your equipment today!
